Bare Concrete
Best SurfaceThis system is designed to bond to properly prepared concrete. The concrete must be clean, dry, sound, and mechanically ground or shot blasted.
Commercial 4-Layer Flaked Epoxy Garage Floor Kit – 300-640sqft
★ ★ ★ ★ ★
“These floors are bulletproof. My crew will only use this system.”
Tom K. – Verified Buyer
Fast 3–5 Business Day Delivery Direct To Site
Mixed Fresh in the USA - Guaranteed to Perform
Often bought together with
Commercial 4-Layer Flaked Epoxy Garage Floor Kit – 300-640sqft

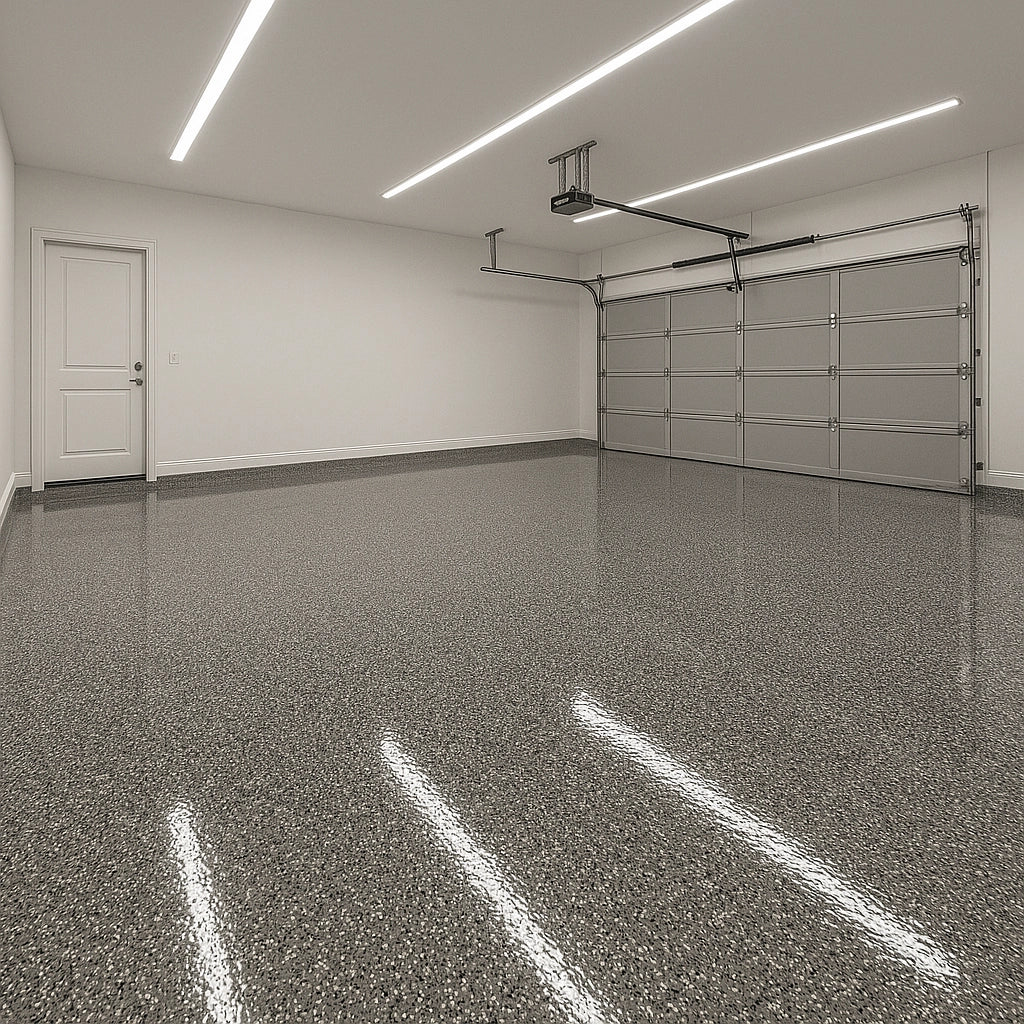

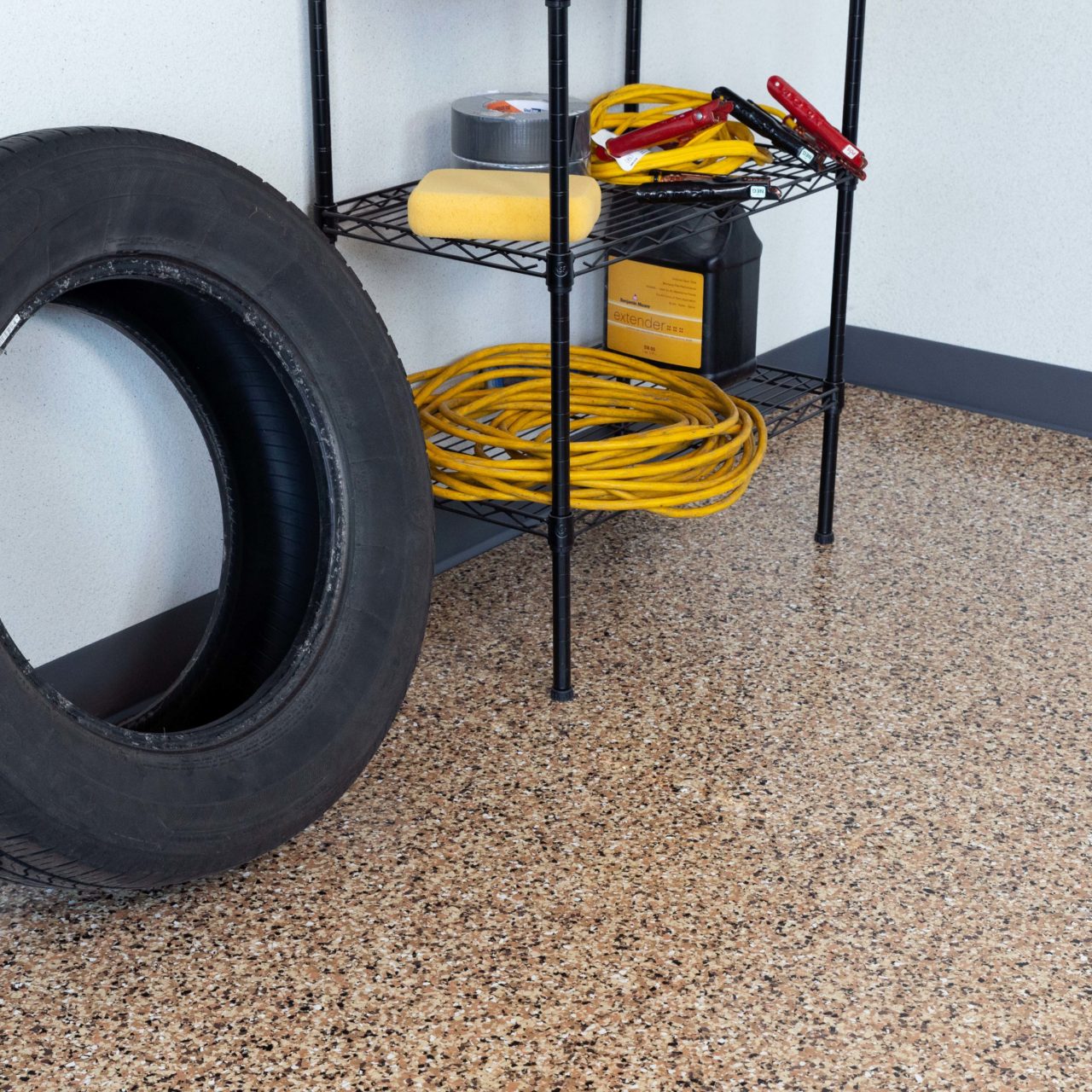

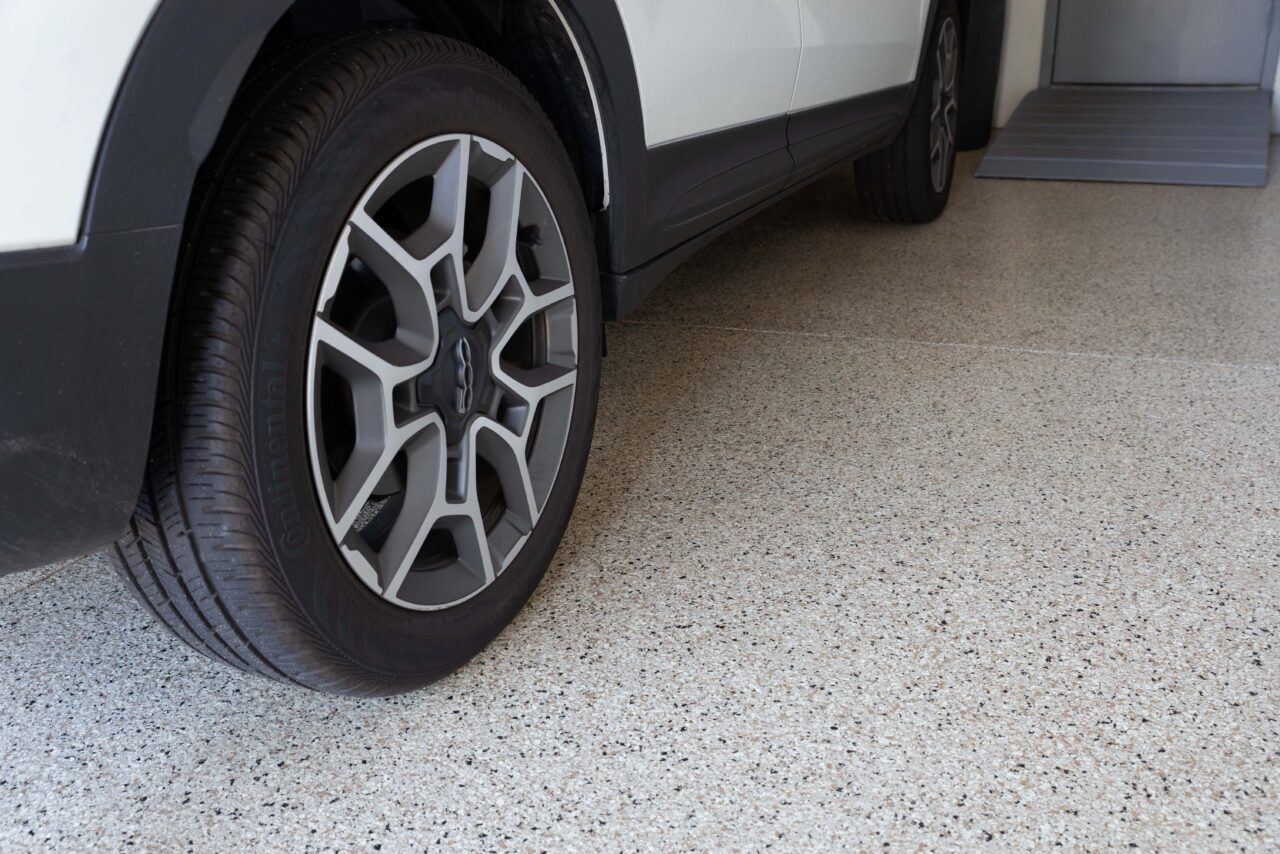

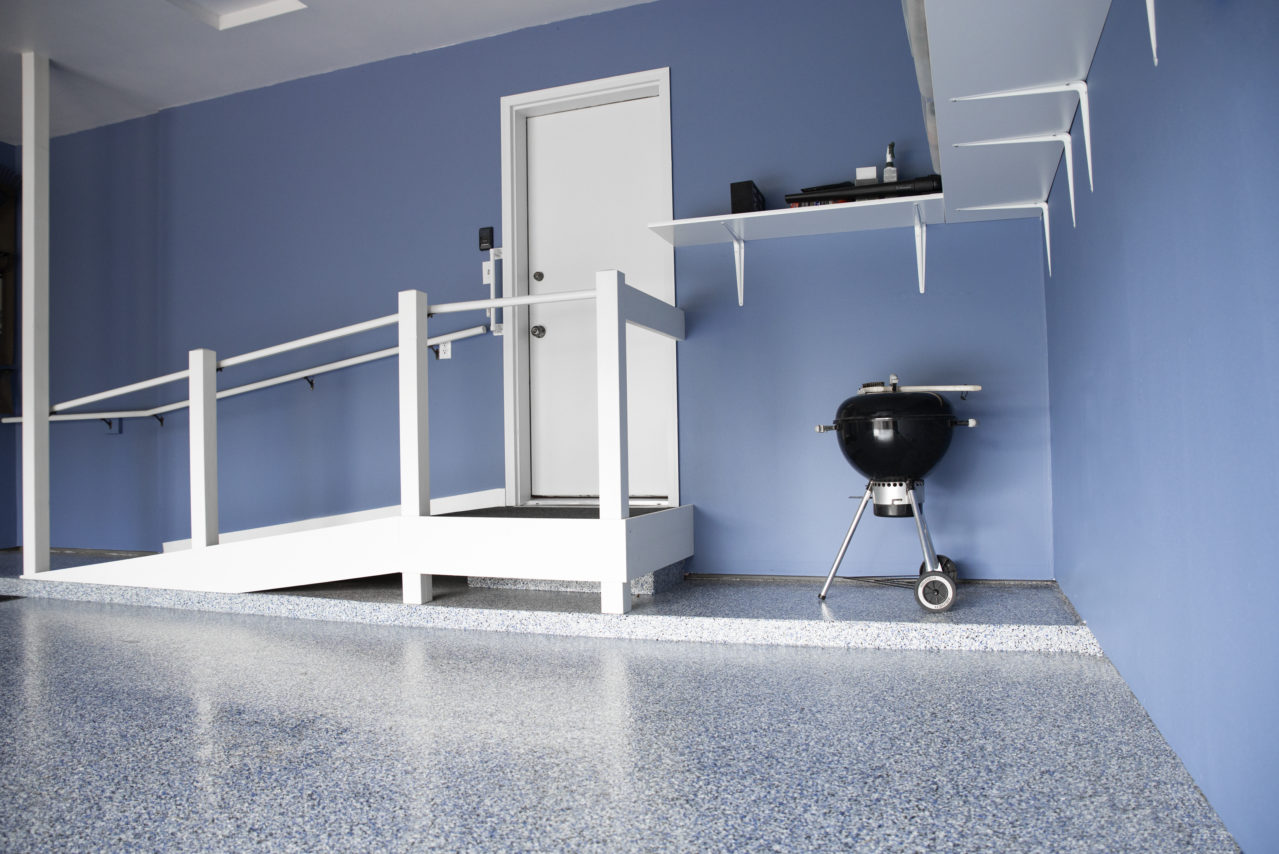

Transform your garage into a clean, professional, and ultra-durable space with the Dymond Flake Garage Floor Kit—a heavy-duty 3-layer system that delivers a beautiful flake finish with serious industrial performance. Designed to withstand high traffic, chemical spills, dropped tools, and hot tires, this kit gives you a professional result that holds up in both residential and commercial garages.

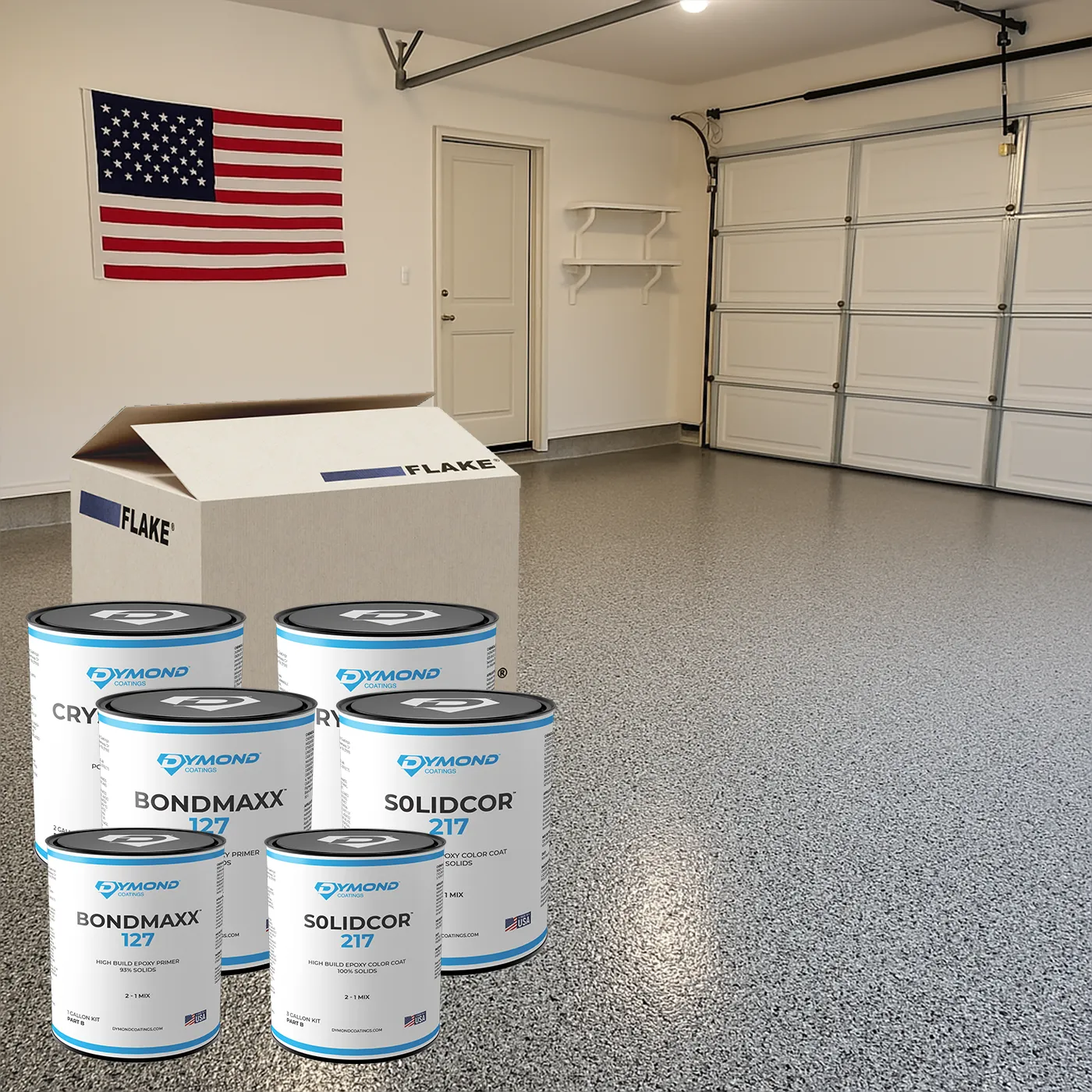

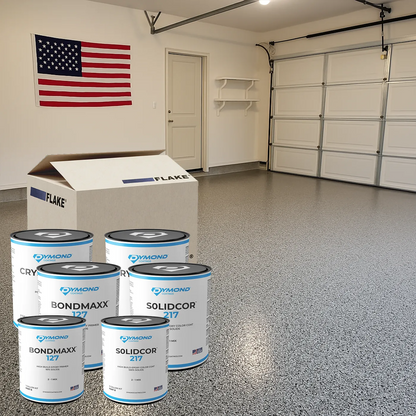

This complete system includes:
- BondMaxx 127 High-Build Epoxy Primer (3 gal)
- SolidCor 217 Epoxy Color Base (6 gal)
- 40 lbs Decorative Flake for full flake coverage
- CrystalCoat 328 Polyaspartic Topcoat (2 gal)
Coverage: Up to 300-640sqft at standard flake floor build rates. Need more or less? Larger/smaller kits available—just ask.
What’s Inside:
BondMaxx 127 Primer A 93% solids, high-build epoxy primer that creates a tight chemical bond to concrete. It penetrates deeply, providing the ideal foundation for long-term adhesion and outstanding chemical resistance.
SolidCor 217 Base Coat A 100% solids epoxy base layer with strong gloss, impact resistance, and chemical durability. This is the body of the system that takes the flake broadcast, delivering long-lasting color and performance.

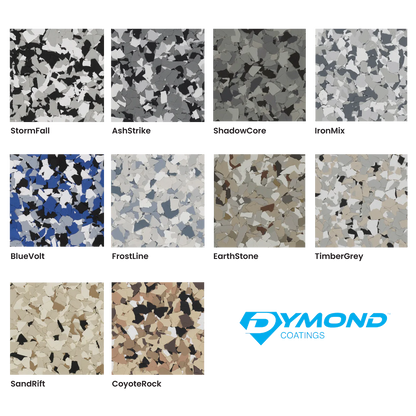

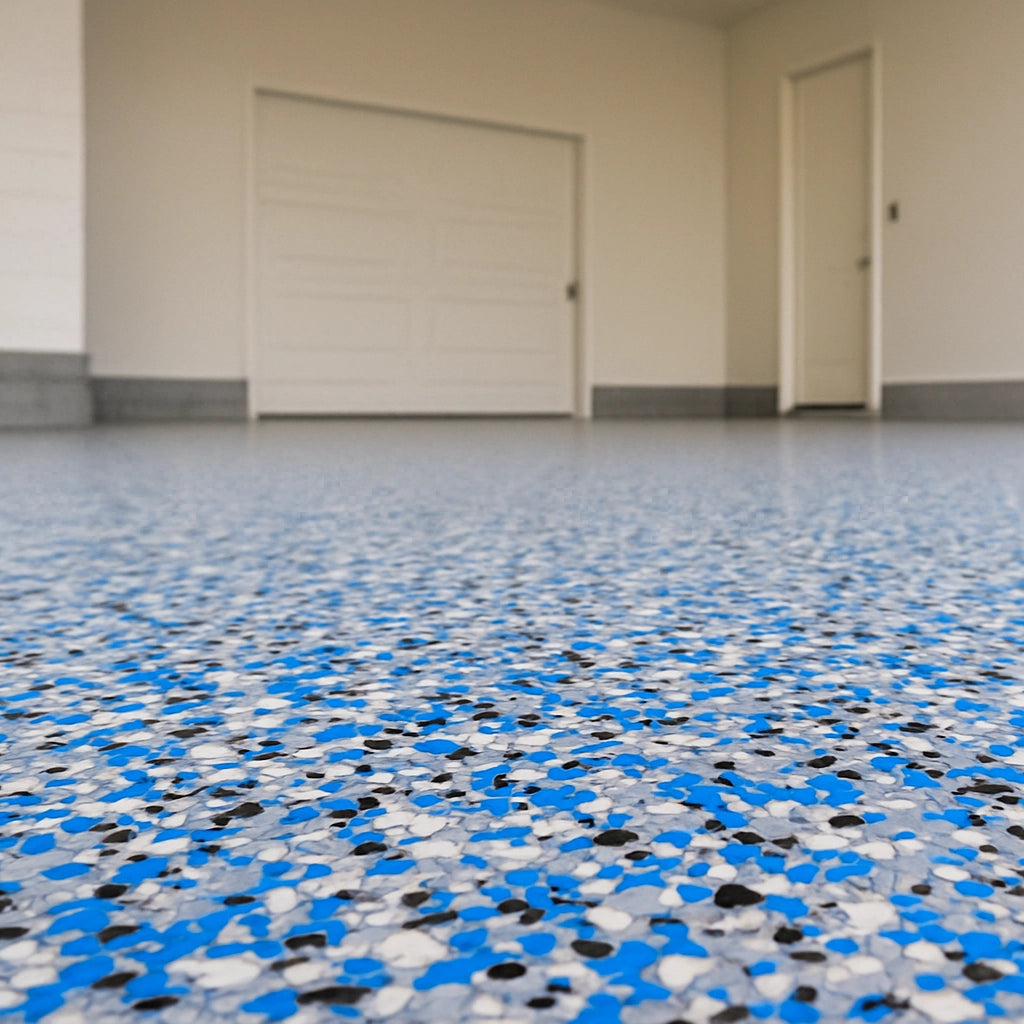

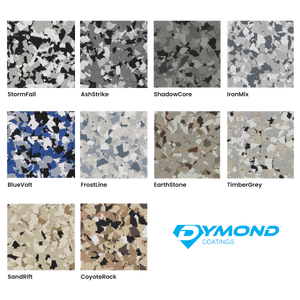

Decorative Flake (40 lbs) High-strength vinyl flakes create a classic terrazzo-style finish, adding texture, slip resistance, and a signature garage aesthetic.
CrystalCoat 328 Polyaspartic Topcoat This UV-stable, crystal-clear polyaspartic locks everything in with a rock-hard, chemical-resistant finish that maintains gloss, resists wear, and cures fast—drive-ready in as little as 48 hours.
Key Benefits:
- Industrial performance in a garage-ready kit
- Flake finish with a high-gloss topcoat for premium aesthetics
- UV-stable top layer maintains clarity and gloss over time
- Exceptional chemical and abrasion resistance
- Fast cure times—drive-ready in as little as 48 hours
- Excellent bonding to new or aged concrete
Ideal For:
- Residential Garages & Shops
- Auto Bays & Dealerships
- Workshop Floors
- Light Industrial Units
- Commercial Maintenance Bays
Application Notes:

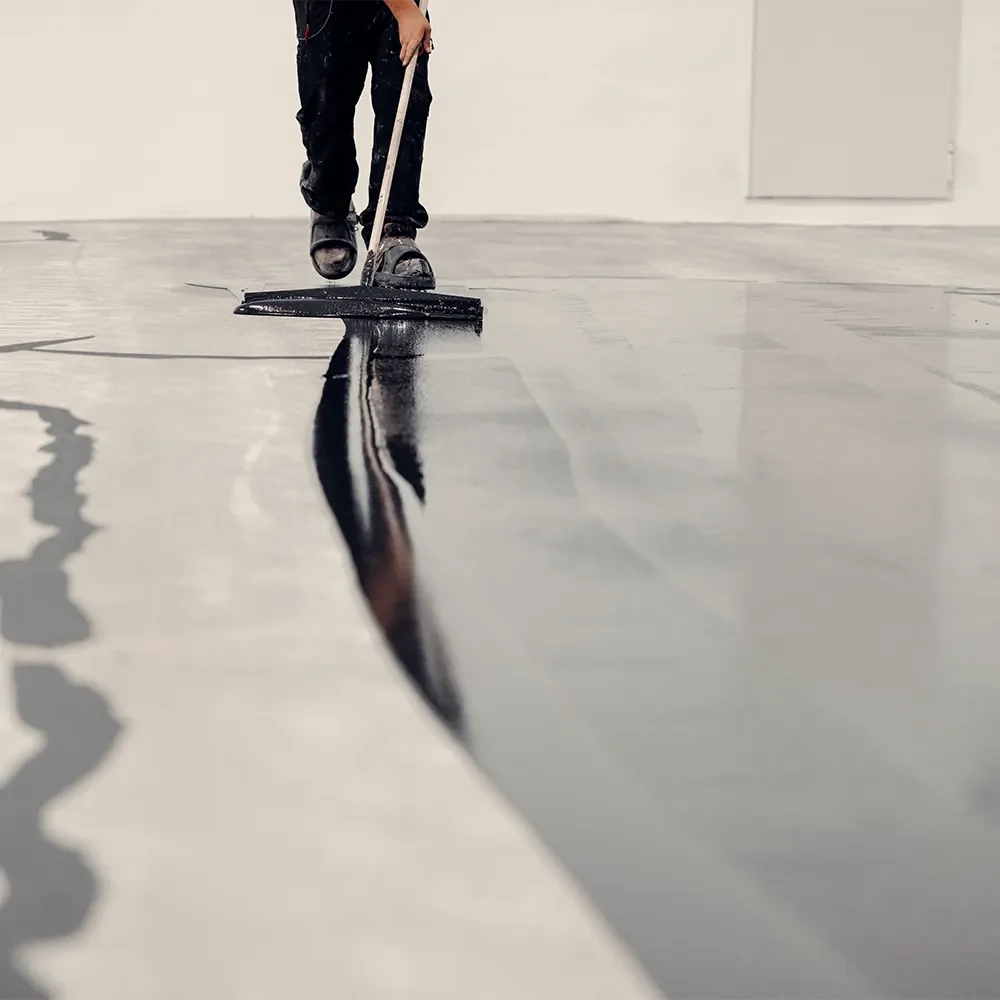

- Apply BondMaxx 127 primer to a properly prepped surface using a squeegee and backroll method

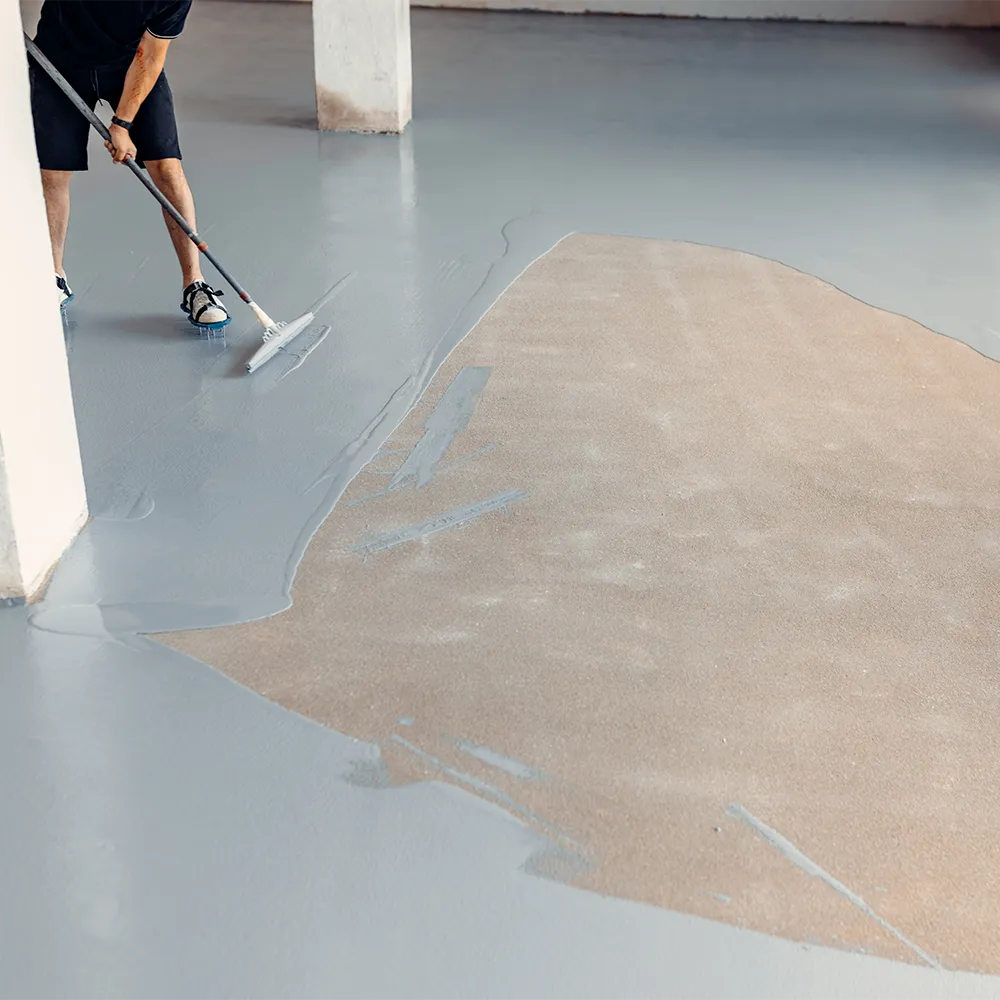

- Squeegee and backroll SolidCor 217 base coat evenly across the floor
- Generously broadcast flake into the wet epoxy until the surface is fully covered
- Allow to cure, then scrape and vacuum excess flake
- Squeegee and backroll CrystalCoat 328 topcoat as your final sealer, making sure to leave a consistent finish
For help with install instructions or picking the right color, don’t hesitate to reach out—we’re here to make it easy.
Want a larger or smaller kit? We can scale it to your space. Let us know your square footage and we’ll get it sorted.
The Strength of Diamond. The Confidence of a Lifetime.
Dymond Coatings are engineered with the same qualities as their namesake — tough, long-lasting, and built to bond for life. That’s why we back every eligible Dymond kit with our Lifetime Promise: if your floor fails due to a verified product defect, we’ll replace the material or issue a credit toward your next job. This warranty applies to complete Dymond systems (primer, base coat, and topcoat) when installed on indoor concrete surfaces and applied according to Dymond’s preparation and application guidelines. Covered issues include delamination caused by faulty resin blends, curing failure due to batch defects, and contamination introduced during manufacturing or packaging. To qualify, the product must be within shelf life, used under proper storage conditions, and installed using only Dymond components.
This warranty does not extend to issues arising from improper surface preparation, substrate contamination, excessive moisture vapor, impact or abuse, substrate movement, or UV discoloration of white/light epoxies. Installations over wood, tile, or outdoor surfaces are excluded unless specifically approved. Cosmetic issues such as texture variation, microbubbling, or minor tint shift are not covered. Warranty coverage is limited to the original purchaser and is non-transferable. Claims must be submitted with photographic evidence of each install stage and full batch documentation. Dymond reserves the right to determine whether the cause of failure falls within warranty scope.
This Promise applies to most DIY and light commercial indoor projects. Larger commercial and industrial installations may be eligible for custom coverage — contact us for terms.
Can This Be Installed Over My Existing Floor?
Yes, in many cases, but the floor underneath has to be clean, solid, and mechanically prepared. The coating can only bond as well as the surface it is applied to.
Every floor is different. When coating over anything other than properly prepared concrete, we strongly recommend applying a small test area first.
Existing Epoxy
Good With PrepThis system can be installed over an existing epoxy coating if the old coating is firmly bonded, clean, sound, and fully deglossed.
Tile
Conditional / Test FirstCan be installed when tile is firmly bonded, clean, degreased, abraded, and tested first. Installation is done at your own risk.
VCT Tile
Conditional / Test FirstMany customers successfully coat over VCT, but the bond depends on tile, adhesive, waxes, moisture, and movement. Installation is at your own risk.
Wood
Conditional / Scratch CoatRequires a scratch coat first. Wood installations are done at your own risk. Always test first.
Required Surface Prep
For a strong bond, the surface must be mechanically prepared. Cleaning alone is not enough.
1
Grind or Shot Blast
The floor must be mechanically ground or shot blasted to create a surface profile the coating can grip.
2
Remove Contamination
Oil, grease, wax, soap residue, dust, old adhesive, sealers, and loose material must be removed before coating.
3
Repair Cracks & Defects
Cracks, holes, divots, and damaged areas should be filled before coating for a stronger, smoother finish.
4
Test First When Unsure
For tile, VCT, wood, unknown coatings, sealed floors, or questionable surfaces, apply a small test area.
Installation Questions We Get Every Week
Click any question to expandDoes the floor need to be ground?
Yes. For a strong bond, the coating needs a clean, mechanically prepared surface profile.
What does delamination mean?
Delamination is when the coating separates, peels, bubbles, or lifts from the floor underneath.
Can this be installed over an existing epoxy?
Often yes, if the existing coating is fully bonded, clean, sound, abraded, and tested first.
Can this be installed over VCT tile?
Sometimes, but the installation depends on the tile, adhesive, waxes, movement, and moisture. Test first.
Can this be installed over wood?
Wood is conditional and normally needs a scratch coat. Always test first.
Can this be installed over tile?
Tile can be conditional. It must be firmly bonded, cleaned, abraded, and tested before a full installation.
Still Not Sure? Test Before You Coat.
Every floor is different. If you are coating over tile, VCT, wood, an unknown coating, sealed concrete, or a questionable surface, apply a small test area first before installing the full system.
The coating can only perform as well as the surface underneath it.
Have a Question We Haven't Answered?
Ask it here. Our product experts are ready and happy to help with any questions you have.
Pro Tip: Always read the full Installation Guide and Product Data Sheets before starting your project. Proper prep is the key to a long-lasting, beautiful floor.
